Specifications

• Cartridge capacity: 200mL (nominal)
• Cartridge ratio: 1:1 and 2:1
• Designed specifically for Mixpac C and F System Cartridges
• Weight: 1.35kg / 2.98lbs

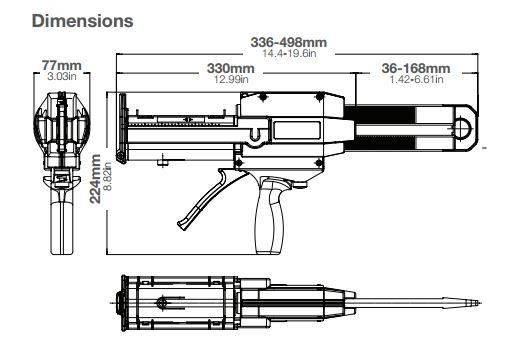

• Length: 366mm / 14.4in
• Maximum Thrust: 5.2kN ( 520kg), 3.7mm stroke·
• Tool material: cast aluminum and reinforced nylon

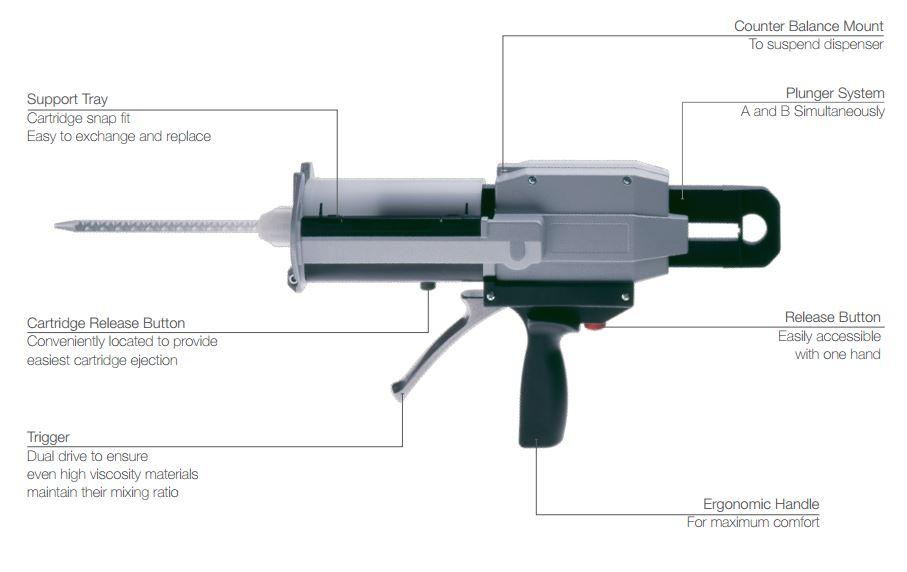

Product Advantages

• Cartridge snap fit
• High gear ratio
• One-hand-operation
• Long-life technology
• Warranty up to 2 years

Customer Benefits

• Easy cartridge positioning and fixation
• Ergonomic
• High precision and dispensing accuracy
• Can easily be converted into different ratios with the proper plunger
• Gives you long worry-free performance

Cartridge Compatibility Table
