MCH 05-24T

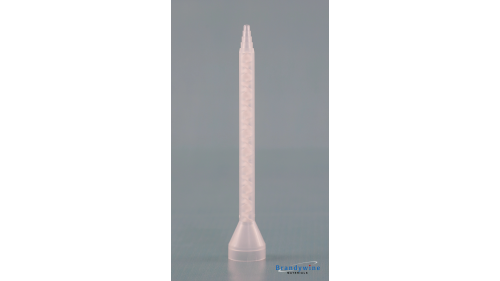

Sulzer Mixpac Static Mixer MCH 05-24T
Mixpac Sulzer static mixer MCH 05-24T is used to dispense adhesives from 200 ml, 400 ml, 600 ml and 1,500 ml AC series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a integral nut mounting method for attachment to two-component cartridges.
Static Mixer MCH 05-24T Specifications
| Property | Value | Property | Value |
| Product | MCH 05-24T | Element Color: | White |
| Description | Mixer, 5mm x 24 ELE., 1:1/2:1 | Element Material | PP |
| Old Product Number | MC 05-24 | Housing Type | Cylindrical |
| # of Elements: | 24 | Housing Material | PP |
| ID* mm | 5.0 | Tip Style: | Stepped Tip |
| ID* inch | 0.20 | Attach to Cartridge | Retaining Nut |
| Length mm | 150 | ||
| Length inch | 5.91 |
* inner diameter
Mixpac nozzle MCH 05-24T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MCH 05-24T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
